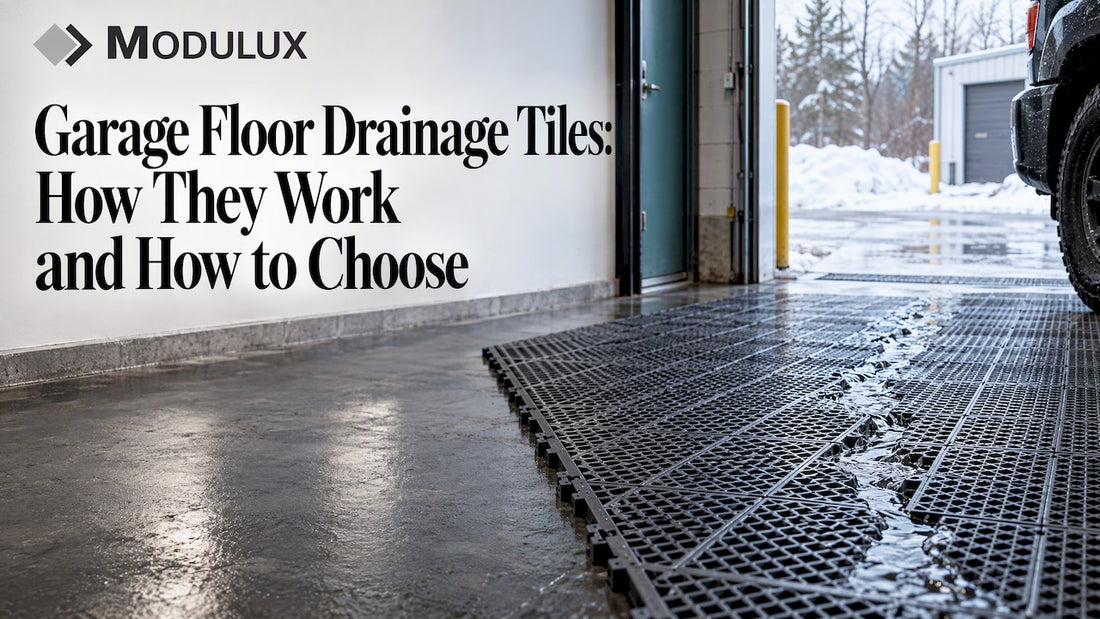

Open-grid tiles draining water in a garage

Garage Floor Drainage Tiles: How They Work and How to Choose

Garage floor drainage tiles are interlocking tiles with an open-grid or perforated design. Meltwater, rain runoff and spills pass through the surface and collect underneath, so the part you walk and park on stays drier and safer. They don’t replace a sloped slab or a floor drain. They make the surface above them work better. If your garage floor turns into a pond every February, this guide shows you what to look for, what to avoid and how to lay tiles that last. 🚗

Modulux
Keep Garage Floors Drier
Modulux snap-lock tiles use an open-grid design to promote ventilation and drainage, while keeping your garage floor easy to clean.
Explore garage flooring

TL;DR

  • Drainage tiles lift you off the wet concrete: water flows through the open grid and your tires, boots and tools stay above it.
  • Open-grid tiles also let air move under the surface, which helps the slab dry out instead of staying damp.
  • Check load rating, tile weight (the 620g and 460g figures below), and whether edges and corners are available for a finished look.
  • Tiles help with surface water, not with a slab that slopes the wrong way. Fix big pooling problems first.
  • Installation is DIY-friendly: snap, trim, finish with edges and corners.

Table of Contents

Why water collects in a Canadian garage

A garage in Canada deals with more water than almost any other room in the house. Snow and ice melt off your vehicle in the first hour after you park. Road salt slush drips from the wheel wells. Add a wet dog, a pressure-washed lawn mower or a leaking hose connection, and you have a steady supply of puddles.

On bare concrete, that water has three options: evaporate slowly, sit in low spots, or soak into the slab. Over a winter, that cycle leads to slippery patches, white salt stains, a musty smell and, in cold regions, repeated freeze and thaw at the surface. Paint and thin coatings are often the first casualty. If you have already seen this happen, our guide to why garage floor paint peels explains the moisture side of it.

A drainage tile floor changes the equation. Instead of a sealed surface that holds water on top, you get a raised, open surface that lets water fall through and out of sight.

Why water collects in a Canadian garage — overview diagram

Do you need a floor drain, or just better tiles?

These are two different things, and people often mix them up.

  • A floor drain is a plumbed opening in the slab that carries water out. Many garages don’t have one.
  • A sloped slab is a floor shaped so liquids run toward the overhead door. In Ontario, the building code says that an attached or built-in garage floor has to be sloped to drain liquids to the outdoors. A local garage door company notes that the code does not require every garage to have a floor drain, only that slope. Other provinces have their own rules, so check with your municipality before you change anything structural.
  • Drainage tiles sit on top of either one. They don’t move water out of the garage by themselves. They keep it away from the surface you use, and they give it a path along the slab toward the door or the drain.

If your slab slopes toward the door, drainage tiles are a very good fit: water passes through, runs along the concrete underneath and exits. If your slab is flat or pitched toward the house, tiles will keep the surface dry for a while, but water will still collect underneath. In that case, talk to a concrete or drainage professional about regrading or adding a drain before you lay anything.

How drainage tiles actually work

The idea is simple. The tile has a top surface with openings and a grid of supports underneath. That design does four jobs.

  1. It drains. Liquids pass through the openings and spread across the slab below instead of pooling around your feet.
  2. It ventilates. Air circulates in the gap, so moisture beneath the tiles has a chance to evaporate.
  3. It grips. A textured, open surface gives your boots a better hold than slick sealed concrete.
  4. It spreads the load. The tile and its supports distribute weight across the slab. Our tiles are engineered for loads up to 70,000 lbs.

What the tile is made of matters as much as the shape. Polypropylene is a tough, impact-resistant plastic that doesn’t absorb water, shrugs off most automotive fluids and tolerates cold. That’s the material we use at Modulux.

Open-grid, perforated or solid: what to compare

When you search for drainage garage flooring, you’ll find several types. Here is how they compare in practice.

Type Water behaviour Best for Watch out for
Open-grid rigid tiles Water passes freely through large openings; air flows underneath Wet or snowy garages, workshops, heavy vehicles Fine debris can fall through, so sweep or rinse periodically
Perforated rigid tiles Water passes through smaller holes Light-duty use, damp areas Small holes can clog with grit and salt residue
Soft PVC or foam mats with holes Some drainage, but cushioned and flexible Gyms, play areas, light foot traffic Not designed for heavy vehicles or hot tires
Solid interlocking tiles Water runs over the top and into the seams Dry garages that need a cleaner look Water can sit in the seams and underneath
Epoxy or paint Sealed surface; water sits on top Dry, well-prepped slabs Slippery when wet; can peel if moisture comes up from below

If you’re weighing tiles against a coating, our comparison of garage floor tiles vs epoxy goes through the trade-offs in more detail.

For a Canadian garage that sees snow, slush and salt, rigid open-grid polypropylene is the type we’d steer you toward. It handles the wet, it handles the weight of a truck, and it cleans up with a hose.

Garage floor drainage ideas that work with tiles

Tiles are one piece. Here are the setups that give the best results, from simplest to most involved.

1. Tiles over a slab that already slopes

This is the easiest case. Lay the tiles from the back wall toward the door, and water follows the slab’s natural pitch under the tiles and out. Pour a bucket of water on the bare slab first and watch where it goes. If it runs to the door, you’re set.

2. Tiles around an existing floor drain

If your garage already has a drain, you can trim tiles around it so it stays accessible. Cut cleanly, keep the opening clear and leave enough room to lift out the grate. Test the drain with a few litres of water before and after.

3. A perimeter of edges and corners

Edge pieces create a ramped transition that stops tiles from catching a toe or a wheel. They also give the floor a finished frame. Leave the door side as the one that lets water out.

4. Regrading or adding a drain first

If water pools in the middle or runs toward the house, fix that before tiles go down. This is a job for a concrete contractor. Once corrected, tiles go over it exactly as in the first idea.

5. A door threshold seal

A rubber seal at the bottom of the overhead door keeps wind-blown snow and rain from coming back in. It’s inexpensive and pairs well with any drainage floor.

What about a sweating slab?

If your garage floor gets damp on warm, humid days even without leaks, you’re likely seeing condensation rather than a drainage failure. Cold concrete meets warm moist air, and water forms on the surface. Open-grid tiles help because they raise the surface and let air move. We cover the causes in more detail in our article on the sweating garage floor.

How to choose drainage tiles for your garage

Use this checklist when you compare products.

  1. Load rating. If you park a pickup, SUV or trailer, look for a clearly stated rating. Ours goes up to 70,000 lbs.
  2. Material. Look for impact-resistant polypropylene with resistance to stains, chemicals and temperature swings.
  3. Thickness and weight. A heavier tile generally means a sturdier one. Our GridMax™ Pro is a 620g tile, and the GridMax™ 460g is a lighter option.
  4. Open grid design. Check that the openings are large enough to drain freely and the structure underneath lets air flow.
  5. Edges and corners. These give a clean perimeter and safe transitions. They’re sold separately at Modulux.
  6. Colours and layout. Garages are one of the few rooms where you can build a checkerboard or a pattern. Plan it before you order.
  7. Warranty and shipping. You want fast shipping across Canada and a warranty behind the product.

For a deeper walk-through, see how to choose the right modular flooring for your garage.

GridMax™ Pro 620g or GridMax™ 460g?

The 620g tile is our heavy-duty option. It suits workshops, trucks, commercial bays and anyone who wants the most robust floor. The 460g tile is a lighter, more economical choice for typical home garages with passenger cars. Both use the open-grid design and snap together without glue.

What it costs

On our site, GridMax™ Pro 620g is listed at $4.99 per sq. ft. and GridMax™ 460g at $3.49 per sq. ft.. Individual tiles start from $8.59 for the 620g and from $6.01 for the 460g. Edges are $4.50 each and corners are $3.49 each, in both lines. Prices are as published at the time of writing, so check the product page before you order.

For example, a standard two-car garage can run to a few hundred square feet, so measure your floor and multiply by the per square foot price to get a working figure, then add edges and corners for the perimeter. For a wider look at what Canadians pay, see garage floor tile cost in Canada.

What it costs — overview diagram

Perspective: what we’ve learned about drainage and tiles

We designed our tiles around a simple idea: a garage floor should deal with water, not fight it. A sealed surface looks tidy on day one, but in a Canadian winter the water has nowhere to go. An open grid gives it somewhere to go, and gives the slab a way to breathe.

We also believe tiles are not a magic fix. If your slab is badly pitched, we’ll tell you to fix the slope first, because the best floor in the world can’t change where water wants to settle. What tiles do very well is make a decent slab much more comfortable, cleaner and more resilient. Stains wipe off, spills drain through and a damaged tile can be swapped out without redoing the room.

The feedback we hear most is how fast people finish. A weekend is often enough for a typical garage, and the floor looks like a mosaic you built yourself.

— Francis

Ready to build your drainage floor?

If you want a floor that drains, ventilates and carries serious weight, start with our GridMax™ Pro 620g tiles for heavy use, or the GridMax™ 460g range for everyday home garages. Add edges and corners to finish the perimeter, and pick up installation tools so cuts are clean.

Browse the full garage flooring collection to compare colours and plan your layout. 🎨

How to install drainage tiles, step by step

You don’t need special skills. Here is the sequence.

  1. Clear and sweep. Remove everything and sweep or vacuum the slab. Tiles can go over most clean, sound concrete without grinding or coating.
  2. Check the slope. Pour water on the slab and note where it runs. Plan to keep that path open toward the door or drain.
  3. Dry-fit the layout. Lay tiles out without locking them to confirm your pattern and where you’ll need cuts.
  4. Start in a corner. Begin at the back corner opposite the door and work toward the door so the loops face the right way.
  5. Snap tiles together. Press the interlocking edges down until they lock. A rubber mallet helps on stubborn joints.
  6. Cut at the walls. Measure and trim the border tiles with a saw. Leave a small gap for expansion at the walls, as temperatures swing a lot in a garage.
  7. Finish with edges and corners. These create smooth ramps on the exposed sides.
  8. Sweep and rinse. Run water across the surface and confirm it drains the way you expect.

If you ever need to lift a section, a dedicated tile remover makes it painless. And if you’re planning a deck or patio as well, the same principles apply, as covered in our guide to laying deck tiles over concrete.

Keeping a drainage floor clean through winter

Open-grid floors are easy to look after, with a few habits.

  • Rinse regularly. In winter, a hose or bucket of water clears salt residue that drips from your vehicle.
  • Sweep debris out. Leaves, gravel and grit can fall through the grid. A broom or leaf blower clears them before they build up.
  • Lift and flush once a season. Pull up a few tiles near the door and rinse the slab underneath.
  • Wipe spills fast. Oil and antifreeze won’t soak into polypropylene, but they will drain onto the slab if you leave them.
  • Don’t block the exit. Keep the path to the door free of boxes and mats so water can leave.

If you live in Quebec, our French-language guide to tuiles de garage à Montréal covers local conditions.

FAQ

Do drainage tiles work if my garage has no floor drain?

Yes, if the slab slopes toward the garage door. Water passes through the tiles, runs along the concrete and exits at the door, and the surface you stand on stays drier. If the floor is flat or slopes toward the house, water will collect underneath, so get the slab corrected first.

Are drainage tiles better than epoxy for a wet garage?

For wet conditions, usually yes. A sealed epoxy surface holds water on top and can be slippery, while an open grid lets water fall through and gives better footing. Epoxy can still look great in a dry garage with a well-prepared slab.

Will the tiles hold a heavy truck?

Modulux tiles are engineered to support loads up to 70,000 lbs. That covers pickups, SUVs and most workshop equipment. For commercial use or very heavy machinery, we suggest the GridMax™ Pro 620g.

Does debris fall through the open grid?

Some fine dirt and grit will, which is part of how the design drains. Sweep the surface regularly and, once a season, lift a few tiles and rinse the slab below. It takes only a few minutes.

Can I install them myself?

Yes. The tiles snap together without glue or special tools, and most homeowners finish a typical garage in a weekend. Use a saw for cuts and finish the edges with edge and corner pieces.
