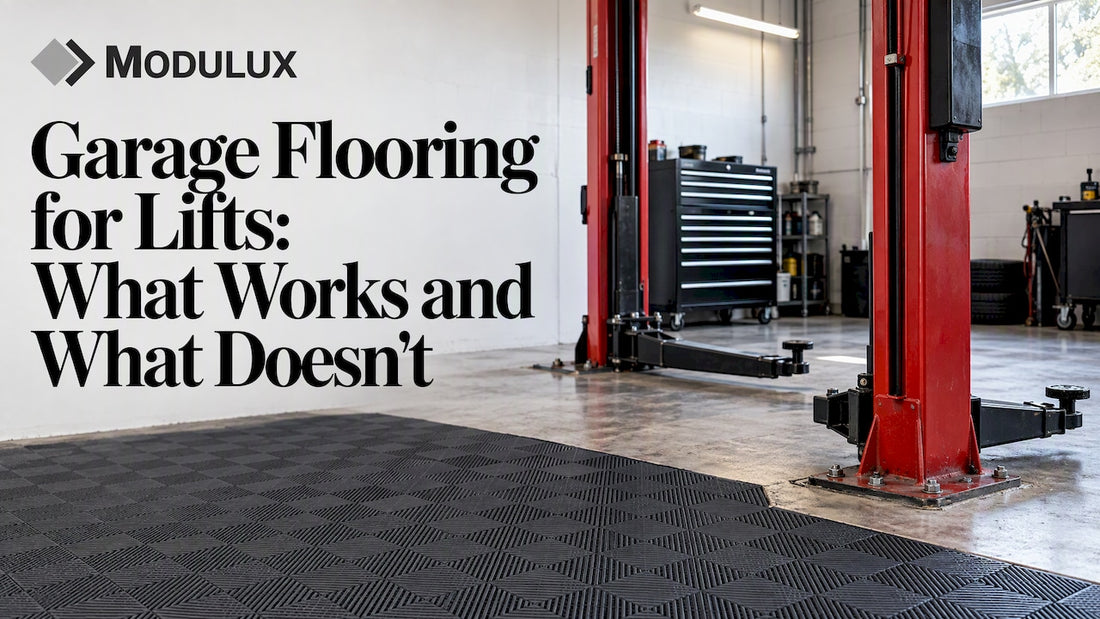

Vehicle lift anchored to bare concrete

Garage Flooring for Lifts: What Works and What Doesn't

The short answer: a vehicle lift belongs on solid, level, properly cured concrete, and your garage flooring should be planned around the lift, not under its posts. Lift makers specify the slab, not the surface finish, so the best floor is one that protects the concrete, leaves the anchoring zone alone and makes the rest of the bay tough, clean and safe to work on. Here is how to get there with confidence. 🚗

Modulux
shopmodulux.com
Protect the Workspace Around Your Lift
Modulux snap-lock tiles create a durable, stain-resistant, easy-to-clean surface around lift posts, with an open-grid design for ventilation and drainage.
Explore garage flooring

TL;DR

  • Lift manuals set the rules for your slab: typically 3,000 psi concrete, around 4 to 4-1/4 inches thick or more, level and free of cracks and joints where the posts sit.
  • A floor covering’s weight rating does not replace those requirements. Lift loads are concentrated on small base plates, and anchors must bite into concrete.
  • Interlocking tiles are an excellent choice for the working area around a lift, as long as your lift manufacturer’s manual allows it and you keep the post and anchor zones clear.
  • Check your manual, then plan the layout before you order a single tile.

Table of Contents

Start with the slab, not the surface

Before you compare tiles, coatings or mats, look at what holds the lift up. Every lift manual we reviewed puts the same demand on the concrete underneath.

The JMC manual for its 9,000 lb lifts calls for 3,000 psi concrete at least 4-1/4 inches thick, recommends a level floor and says not to install over expansion joints or cracks. The Coats 10,000 lb manual asks for level concrete with no more than 3 degrees of slope, at least 4 inches (102 mm) thick, rated 3,000 psi (20.7 MPa) and aged at least 30 days. It prohibits asphalt and outdoor installation. The iDEAL LR-10K-TLPAD manual is similar: solid, level concrete, no more than 2 degrees of slope, at least 4-1/4 inches thick and 3,000 psi, with steel reinforcement.

The pattern is clear. Your lift needs:

  1. Strong concrete: 3,000 psi is the figure these manuals repeat.
  2. Enough thickness: roughly 4 to 4-1/4 inches at minimum, and more for heavier lifts.
  3. A level, sound surface: no cracks or expansion joints under the posts.
  4. Time to cure: a new pour should age before it carries a lift.

If you are not sure what is under your garage floor, that is the first thing to confirm. For reference, the City of Edmonton’s detached garage design guide says a floor-on-ground slab at least 100 mm (4 in.) thick may serve as the foundation and floor of a small one-storey detached garage. That describes a typical garage slab, not a lift-ready one, so always compare your slab against the manual for your specific model.

Why anchors set the rules

Lift columns are bolted into the slab. The iDEAL manual asks for anchors at least 6 inches from slab edges or seams and at least 6-1/2 inches apart, with a minimum 3-1/4 inch embedment. It says to shim columns plumb and torque anchors to 130 ft-lb. If the anchors will not reach that torque, it calls for a 7 by 9 foot, 6 inch thick, 3,000 psi replacement pad keyed flush with the existing floor.

Lift anchor clearances and replacement pad dimensions

None of that works through a layer of flooring. Anchors need to grip solid concrete, and a base plate needs to sit flat on it. That single fact shapes everything else in this article.

Can tiles, mats or rubber go under a lift?

This is the question most readers actually have, and the honest answer is: not under the posts, and only where your lift manual allows around them.

The manuals above describe installation directly on concrete. We have not found a lift manual that approves anchoring through interlocking tiles, rubber or PVC mats, so we do not recommend it. A soft or segmented layer under a base plate can compress, shift or hide a crack, and it keeps your anchors from reaching the depth the manufacturer specifies. Your lift supplier or installer has the final word, so ask them before you lay anything near the columns.

What works well is a hybrid approach:

  • Leave the base plates and anchor zones on bare, sound concrete.
  • Cover the working bay, the walkways and the areas between and around the posts with a modular floor.
  • Finish the tile edges neatly against the exposed concrete.

That gives you a lift that is installed exactly as the manufacturer intended and a floor that still looks and performs like a finished workshop.

Why a weight rating is not the whole story

It is tempting to compare tile load ratings against the weight of your vehicle plus the lift. That comparison misses how loads actually travel.

NRC Canada’s structural loads material separates loads spread over 750 by 750 mm areas from concentrated loads tied to a wheel’s contact area. A lift concentrates a vehicle’s weight in a few small spots. Weyerhaeuser’s bulletin on garage floors makes the same point for elevated floors in Canada: a minimum concentrated live load of 18 kN (4,050 lbf) for vehicles up to 4,000 kg, and 36 kN (8,100 lbf) for vehicles over 4,000 kg up to 9,000 kg. It also says design should consider dynamic effects and load transfer through the whole system to the foundation, and that commercial garages and vehicle-repair facilities need special consideration beyond what it covers.

What this means for you:

  • The tile’s rating tells you how it behaves under rolling and standing loads, such as a car, a toolbox or a jack stand pad.
  • The slab carries the lift. The tiles never should.
  • If your garage is above living space or has a raised floor, talk to a structural professional before installing a lift at all.

Choosing the right floor for the rest of the bay

Once the lift zone is settled, you can choose a surface for everything else. Canadian Woodworking’s overview of shop and garage floor coverings treats epoxy as a concrete coating, while modular tiles, rolls and rubber are more adaptable coverings. It says material choice should reflect substrate movement, moisture, chemicals, impact and comfort. It also describes polypropylene and PVC tiles as waterproof and resistant to chemicals, oils, mildew and mould.

Here is how the main options compare around a lift.

Option Strengths Watch-outs near a lift
Epoxy coating Seamless look, bonded to concrete Can peel or hide cracks, and any slab problem stays under the coating
Rubber mats or rolls Comfortable, quiet Can shift or curl at edges, absorb oils
Modular polypropylene tiles Quick to install, easy to lift and replace, open grid drains and ventilates Must stay off anchor zones and be cut cleanly around posts
Bare sealed concrete Ideal for anchoring Stains and sweats, harder on knees and dropped tools

If you are weighing coatings against tiles, our guides on garage floor tiles versus epoxy and epoxy garage floor problems go deeper. One practical benefit for lift owners: a tile floor can be lifted section by section, so you can inspect the concrete around your anchors whenever you like.

Planning a tile layout around lift posts

This is where a modular floor really shines. Tiles snap together like a mosaic, so you can shape them around obstacles with a few cuts. Here is a simple plan. ✅

  1. Read your lift manual. Note the base plate size, the anchor pattern and any clearance zones.
  2. Sketch the bay to scale. Mark the posts, the runway or arm sweep area, the door and the workbenches.
  3. Mark no-tile zones. Keep each base plate and its anchor area on bare concrete, with a margin so tiles never touch the plate or sit under any part of it.
  4. Inspect the slab. Look for cracks, joints and uneven spots. Fix or consult a professional about anything near the posts before they go in.
  5. Dry-lay the tiles. Start from a straight reference line, snap the tiles together and cut around the exclusion zones.
  6. Finish the edges. Edge and corner pieces give a clean transition to the exposed concrete and remove trip points.

For design ideas, see our garage floor tile patterns. If you are still choosing a tile type, our guide to choosing modular flooring for your garage walks through the decision.

Keeping the lift area safe and clear

A floor that looks great but gets slick with oil is a hazard. The HDA four-post lift manual says to keep the lift area clear, remove oil and grease from runways, inspect the lift daily and engage the mechanical safety locks before working beneath it.

An open-grid tile helps with the first two. Spills drain through rather than pooling under a tyre, and tiles can be rinsed or swapped. It does not replace your daily routine. Wipe drips, check the area and follow your manual.

Home garage or commercial shop?

The flooring logic is the same, but the responsibilities are not.

At home, you answer to your lift manual and your installer. Hire someone qualified, confirm the slab and keep records of your inspections.

In a commercial shop, there are workplace rules on top. In Ontario, for example, pre-start health and safety guidance says vehicle-lift installation should be performed by trained workers familiar with the procedure and in line with the manufacturer’s instructions or an Ontario-licensed engineer. It also notes that a workplace may claim an exemption from a pre-start review where the lift is certified to applicable standards, naming ANSI/ALI ALCTV-2011 as an example. Other provinces have their own rules, so check yours.

Ongoing care matters just as much. The Coats manual calls for trained and authorized operators, daily inspections, planned maintenance and a yearly inspection by a certified lift technician. Safety advice drawn from the Automotive Lift Institute, reported in Auto Service World, also recommends documented operator training, at least annual inspection by a qualified inspector and daily checks for cracks or loose concrete around floor anchors.

That last point is a good reason to keep tiles away from the anchors: you want to see the concrete every day.

Home garage or commercial shop? — overview diagram

Our perspective: protect the slab, free the workspace

We build modular garage floors, so we hear this question often, and our answer is always the same: a lift and a tile floor are partners, not substitutes. The lift needs bare, strong concrete where it is bolted down. Everything else in the bay benefits from a floor that resists stains, drains water and can be repaired in minutes.

Our GridMax tiles are made of impact-resistant polypropylene with an open-grid design for drainage and ventilation, and they are built to carry heavy loads, up to 70,000 lbs by our rating. We still would never tell you to anchor a lift through them. That rating tells you the tiles can handle vehicles and equipment rolling across them. It does not turn a tile into a foundation.

Our advice, in order:

  1. Confirm the slab against your lift manual.
  2. Keep anchor zones bare.
  3. Tile the working bay for comfort, cleanliness and looks.
  4. Keep your daily inspection habit and look at the concrete around the posts.

Done this way, you get a bay that is safe, tidy and a pleasure to work in. 🔧

— Francis

Build your lift-ready bay with Modulux

If you are ready to floor the area around your lift, our snap-lock tiles are made for it. GridMax Pro 620g tiles are listed at $4.99/sqft, and GridMax 460g tiles at $3.49/sqft. Matching edge pieces are $4.50 each and corner pieces $3.49 each, which gives you a finished perimeter where tiles meet the exposed concrete around your lift.

Modulux

Browse the full garage flooring collection to pick colours and plan your layout. For cutting around posts and lifting sections later, our tile cutter and tile remover make the job straightforward.

A quick pre-order checklist

Before you check out, run through these questions:

  • Do you have your lift’s installation manual and the slab requirements in hand?
  • Have you confirmed the concrete’s thickness, strength, age and condition?
  • Have you marked the base plates and anchor zones as no-tile areas?
  • Is your floor level enough for both the lift and the tiles?
  • Have you measured the bay and added a little extra for cuts?
  • Do you know who will install and inspect the lift?

If you can answer yes to each, you are ready to enjoy a garage that works as hard as you do.

FAQ

Can I install a car lift on garage floor tiles?

We do not recommend it. Lift manuals we reviewed specify installation directly on solid, level concrete of a stated thickness and strength, and anchors need to reach their full embedment depth. Keep tiles off the base plate and anchor zones, and confirm your layout with your lift supplier.

What concrete do I need for a vehicle lift?

The manuals we reviewed call for about 3,000 psi concrete, at least 4 to 4-1/4 inches thick, level and without cracks or expansion joints at the posts. New concrete should be aged, and one manual asks for at least 30 days. Always follow the figures for your specific model.

Is epoxy better than tiles for a garage with a lift?

Epoxy is a coating that bonds to the concrete, and tiles are a removable covering. Either can suit the working area, but neither should sit under the lift’s base plates. Tiles let you inspect the slab and replace damaged sections without recoating the whole floor.

Do I need a professional to install a lift?

In workplaces such as Ontario shops, guidance says installation should be done by trained workers following the manufacturer’s instructions or an Ontario-licensed engineer. At home, the same approach is the safest, since anchoring and slab questions are easy to get wrong.

Will oil and chemicals damage the tile floor?

Polypropylene tiles are described as resistant to oils and chemicals, and an open-grid design lets spills drain through. Still, wipe up oil and grease promptly, especially on lift runways, as lift manuals advise.
