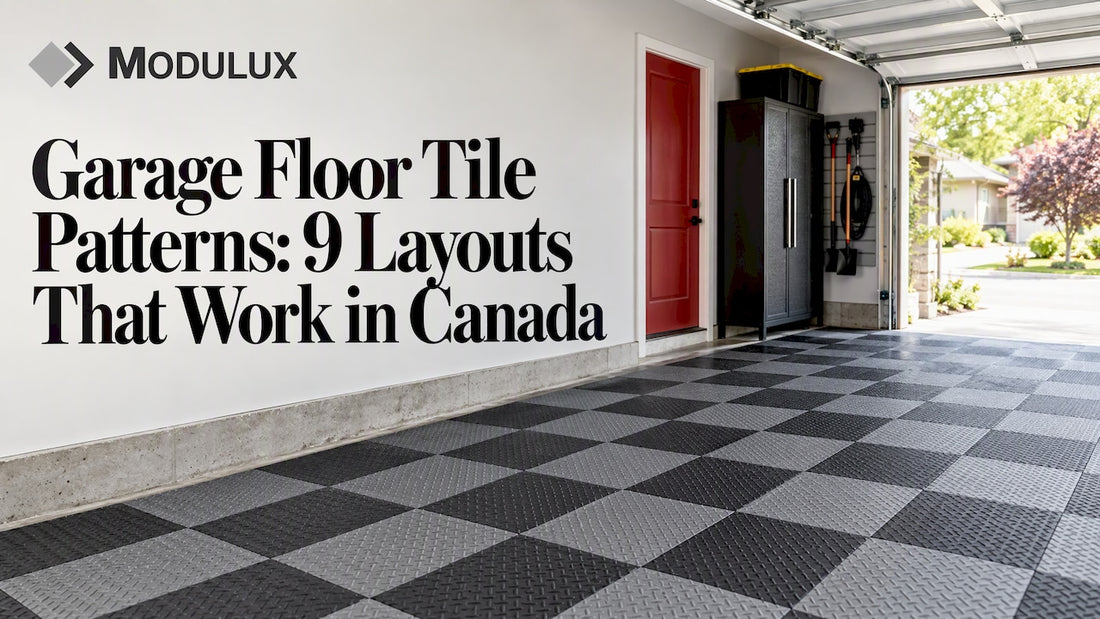

Two-colour tile pattern across a garage floor

Garage Floor Tile Patterns: 9 Layouts That Work in Canada

The best garage floor tile pattern is the one that matches how you use the space. A two-colour checkerboard gives you the classic showroom look. Colour blocking marks out parking and workshop zones. A contrasting border frames the whole floor. Below, you’ll find nine layouts, the maths to plan each one, and the Canadian-specific details that decide whether your design still looks good after a few winters. 🚗

Modulux
shopmodulux.com
Design a Garage Floor That Works
Modulux snap-lock tiles combine customizable colour patterns with an open-grid design for ventilation and drainage in garages and workshops.
Explore Modulux tiles

TL;DR

  • Checkerboard, zone blocking and a contrasting border are the three layouts most people choose. Each can be done with just two colours.
  • Plan from the most visible corner, count tiles by colour before you order, and add matching edges and corners so the finish looks professional.
  • In an unheated Canadian garage, material matters more than pattern: choose temperature-rated polypropylene and an open, drainable design.
  • Prepare the concrete first. Cracks and unevenness show through any pattern.
  • At Modulux, you can try colour combinations in our design tools before you buy.

Table of Contents

Before you pick a pattern: three decisions that shape the design

A pattern is only as good as the floor underneath it. Settle these three points first, and the creative part gets much easier.

1. Tile material. Snap-lock tiles are usually made from polypropylene, PVC or rubber. For an unheated garage, polypropylene is the usual standard because it copes with expansion and contraction, while standard PVC can turn brittle or deform in big seasonal swings. Our tiles are made from impact-resistant polypropylene, with resistance to stains, chemicals and temperature.

2. Open or solid surface. Snowmelt and road salt come into every Canadian garage on your tires. An open-grid, raised design lets water and grit fall through and lets air circulate. Garage experts recommend raised, perforated tiles in these conditions to avoid moisture-related mould and chemical damage to the concrete. Our GridMax tiles use an open grid for exactly this reason.

3. Colour range. Fewer colours usually look better on a garage floor. Two colours cover almost every layout below. Three is plenty for a design with a border and zones.

Nine garage floor tile patterns, and who each one suits

1. Classic checkerboard

Alternating two contrasting colours is the layout people picture when they think of a show garage. Black and grey is subtle. Black and a bright accent is bold.

  • Best for: car lovers, single-bay and two-bay garages with a clear open floor.
  • Plan: you need exactly half your tiles in each colour, so count carefully. Start from the corner you see first when you open the door and work outward, because a checkerboard shows every misalignment.
  • Watch out: a very high contrast makes dirt and salt marks in the lighter colour more visible. Pick a mid-tone as your light colour if you park a winter vehicle in the garage.

2. Zone colour blocking

Use one colour for the parking bay and another for the workshop, storage or gym area. Zone-specific colour blocking is one of the most popular ideas because it is practical as well as pretty: you see at a glance where the car goes and where the workbench begins.

  • Best for: shared garages, hobby workshops, home gyms.
  • Plan: sketch the zones on graph paper with each square as one tile. Keep zone edges on tile lines, so no cutting is needed.

3. Contrasting border (the picture frame)

Lay a field of one colour and surround it with a single row of another colour. It makes the floor look finished, it hides slightly out-of-square walls, and it uses far fewer accent tiles than a checkerboard.

  • Best for: anyone on a budget who still wants a designed look.
  • Plan: count the perimeter tiles for your accent colour, then fill the field. Add edge pieces on the outside so the border has a clean ramp.

4. Centre inlay

A rectangle or square of a second colour in the middle of the floor, often sized to the car’s footprint, creates a showroom stage. Surround it with a field colour, and add a border if you like.

  • Best for: display-style garages, motorcycles and classic cars.

5. Racing stripes

One or two lines of contrasting tiles running the full length of the garage, either down the centre or on both sides of the parking bay, give a sporty look and guide you when you pull in.

  • Best for: long, narrow garages where lines emphasize the depth.
  • Plan: stripes one tile wide read best. Two tiles wide is more of a runway.

6. Diagonal checkerboard

The same alternating idea turned 45 degrees. It draws the eye along the longest sightline and can make a small garage look bigger.

  • Best for: square or compact garages.
  • Watch out: every wall edge needs a cut tile. Budget extra tiles for cuts, and use a proper tile cutter so you get clean angles. We carry a tile cutter machine for this.

7. Solid colour with accent corners

The cleanest option: a single colour across the whole floor, with a few accent tiles at the door threshold or in the corners. It is the easiest to install and the easiest to repair, since any tile matches any other.

  • Best for: contractors working to a deadline, commercial and rental spaces, first-time DIYers.

8. Parking-bay outlines

Mark each vehicle’s space with a rectangle of accent tiles. In a three-car garage or a small shop, this stops everyone parking in the wrong place and defines walkways.

  • Best for: multi-vehicle garages and small commercial bays.

9. Lit hexagon feature

If you like the garage as a showpiece, pair a calm two-colour floor with hexagonal ceiling lighting so the tiles pick up the glow. We offer hexagonal lights that suit this look.

  • Best for: detailing bays, man caves and display garages.

Which pattern fits which garage? A quick comparison

Pattern Look Tile cutting Colours needed Best for
Checkerboard Classic, high impact Minimal 2 Show garages
Zone blocking Practical, tidy None if zones follow tile lines 2 to 3 Workshops, gyms
Border Finished, elegant Minimal 2 Budget upgrades
Centre inlay Showroom Minimal 2 Collector vehicles
Racing stripes Sporty Minimal 2 Long garages
Diagonal Spacious Many cuts 2 Compact garages
Solid with accents Clean, simple Minimal 1 to 2 Fast installs
Bay outlines Organized None if bays follow tile lines 2 Multi-car garages
Lit hexagon Dramatic Minimal 2 Display spaces

How to plan your layout in six steps

A good pattern starts on paper. Here is the process we suggest.

  1. Measure the floor. Record length and width in feet, and note any floor drains, steps, posts or door tracks.
  2. Divide by tile area. Floor area divided by the area of one tile gives your tile count. Round up, and add extra for cuts and for a few spares in case a tile ever needs replacing.
  3. Draw the grid. Use graph paper, one square per tile, and colour it in. Ten minutes here saves a lot of regret later.
  4. Choose your starting corner. Begin where the eye lands first, which for most garages is the corner nearest the entry door or the back wall in view of the main door. Work outward in rows.
  5. Count tiles per colour. Write down the exact total for each colour, then add the same small allowance to each.
  6. Add edges and corners. Edge pieces give a ramped finish that removes tripping hazards and make the floor look professionally built.

A worked example: the 20 ft x 20 ft double garage

A double garage of 20 ft x 20 ft is 400 sq. ft. Our GridMax Pro 620g tiles are listed at $4.99 per sq. ft., which puts the tiles alone for the full floor at $1,996 before edges, corners and spare tiles. Our GridMax 460g tiles are listed at $3.49 per sq. ft., or $1,396 for the same area on the same basis. For a checkerboard, half of those tiles would go to each colour, so 200 sq. ft. of each. For a border design, you would order the field colour for most of the floor and a small amount of accent colour for the perimeter row.

Tile costs and colour allocations for a double garage

For a wider budget picture, including installation, see our guide to garage floor tile cost in Canada.

Choosing tiles that survive a Canadian winter

A pattern that looks great in October needs to look great in March, too. Three things matter most.

Temperature rating. GarageCanada360’s experts say the biggest mistake is picking looks over climate suitability. For unheated garages, they call temperature-rated polypropylene the key, and good ones are often rated down to -40°C.

Lock count. For heavy equipment or multi-vehicle garages, look for six locks per side rather than four. More locks mean more stability under load. Our tiles are engineered to carry loads up to 70,000 lbs, which covers cars, trucks, tool chests and workshop machinery.

Drainage and ventilation. An open grid lets slush, meltwater and salt slip below the surface, and keeps the concrete beneath from sitting wet. In our experience that matters as much as the colours you pick. If your slab tends to get damp or condensation forms on it, read our piece on the sweating garage floor.

Prepare the slab so your pattern stays straight

Tiles are friendly to DIYers, but the result depends on the surface. Professionals note that ignoring small cracks or unevenness leads to tile lifting and puts stress on the locks. A crooked floor will also throw off a precise checkerboard long before it throws off a solid colour.

  • Sweep and degrease the concrete.
  • Fill significant cracks and grind down high spots.
  • Check for standing water or damp patches and fix the cause.
  • Leave a small gap at the walls so the floor can expand and contract with the seasons.

Then follow our step-by-step guide to installing Modulux garage tiles yourself. A rubber mallet helps you get consistent click-and-connect assembly, and our installation tools cover the rest.

What we think about garage floor design

We have seen a lot of garage floors, and our view is simple: design the floor around the way you live in the garage, then pick the colours. A beautiful checkerboard that turns into a salt-stained mess by February doesn’t serve anyone. A simpler layout on a tile built for Canadian conditions does.

Three habits we recommend:

  1. Choose two colours, not five. Contrast gives you the impact. More colours usually make a garage feel smaller.
  2. Keep your pattern on tile lines. If your zones and borders follow the grid, you avoid cuts and the floor goes down faster.
  3. Finish with edges and corners. They turn a stack of tiles into a floor.

One more advantage of a modular floor: if a tile is ever damaged, you replace that one tile and the pattern stays intact. You can also move the whole system to a new home. Try your layout in our design tools before ordering, and you’ll see the mosaic before the first tile clicks into place. ✨

— Francis

Ready to build your pattern?

Our GridMax Pro 620g collection is the heavier-duty choice, with tiles from $8.59 each, edges at $4.50 and corners at $3.49. If you prefer a lighter-weight option, the GridMax 460g collection starts at $6.01 per tile, with the same edge and corner prices. You can also browse our full garage flooring range, and we ship across Canada.

Maintaining the look year after year

A pattern stays crisp when the floor stays clean. Our tiles are stain-resistant and easy to clean, so a hose and a push broom handle most days. Add one Canadian habit: each spring, lift a few tiles near the entrance and check for trapped salt, grit or moisture, since these can build up under a raised base and affect the concrete over time. Because the tiles are modular, it takes a few minutes, and you can click them back into place.

Homeowner lifting tiles to inspect garage concrete

If you’re replacing an older floor, our tile remover helps when it’s time to change designs.

FAQ

Can you put tile on a garage floor?

Yes. Interlocking polypropylene tiles go straight onto a clean, reasonably level concrete slab with no glue. Rigid ceramic or porcelain tiles need a bonded installation and are less forgiving of cracks and temperature swings, which is why snap-lock tiles are the common choice in Canadian garages.

Are interlocking garage floor tiles any good?

They are a durable upgrade when you choose the right material. Polypropylene suits unheated Canadian garages, and an open design handles snowmelt and salt. They also let you replace a single damaged tile instead of redoing the floor.

What is the easiest garage tile pattern to install?

A solid colour with a few accent tiles, or a simple border. Both follow the tile grid, need little cutting and are quick to repair. Diagonal layouts take the longest because nearly every wall edge needs a cut.

How many colours should I use?

Two is the sweet spot for most garages. It gives you checkerboards, borders, stripes and zones with a clean, intentional look. Add a third only for a small accent, such as a bay outline or logo block.
